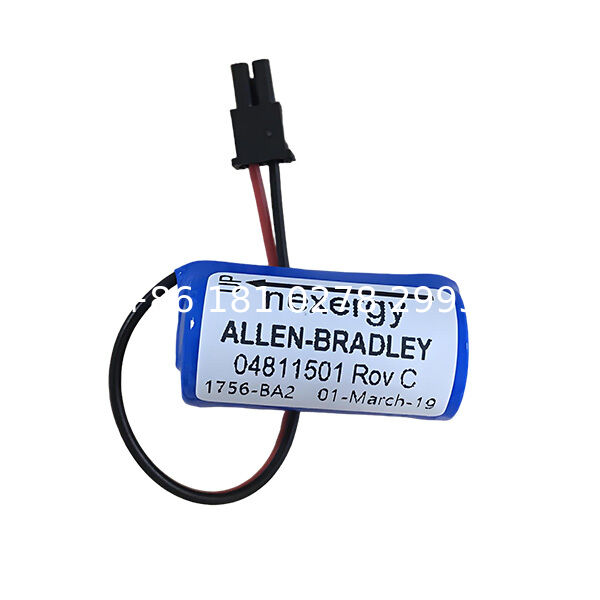

Allen-Bradley 1756-BA2 Lithium Battery — Comprehensive Product Overview

Introduction

Industrial automation systems depend on consistent, reliable power for both operation and data retention. In the case of Allen-Bradley ControlLogix systems, non-volatile memory is used to retain controller programs and critical data even when power is removed. The Allen-Bradley 1756-BA2 is a lithium battery specifically designed for the ControlLogix family of controllers, and it ensures that the controller maintains its memory contents during power outages or planned shutdowns.

While it may appear to be a simple accessory, the 1756-BA2 battery plays a critical role in the stability and reliability of a control system. Without it, programs stored in volatile memory could be lost in the event of a power failure, leading to downtime, reprogramming requirements, and potential safety hazards. This battery is therefore not just a maintenance item, but an essential part of long-term system integrity.

Unlike communication modules or processors, which are the active components of the system, the 1756-BA2 provides passive yet crucial support. Its focus is reliability, extended service life, and predictable performance under a wide range of operating conditions.

Key Characteristics and Design Philosophy

The 1756-BA2 is designed with industrial demands in mind. The battery uses lithium chemistry, chosen for its high energy density, stable discharge profile, and long shelf life. It is optimized for compatibility with all ControlLogix controllers that require a battery module, and its form factor allows quick replacement without special tools.

One of the distinguishing features of the 1756-BA2 is its long operational life. In typical applications, the battery can last between two and three years depending on environmental conditions and the frequency of power cycles. Rockwell Automation recommends periodic replacement to maintain reliability and prevent unexpected controller memory loss.

Additionally, the battery is designed for hot-swap replacement in most systems. This means that it can often be replaced while the controller remains in operation, provided that the controller is powered and the program is running from RAM. This reduces downtime and supports continuous production processes.

Technical Specifications

The following table presents the main specifications of the Allen-Bradley 1756-BA2 battery module:

This specification data ensures that system designers and maintenance personnel can select, install, and maintain the battery confidently, knowing that it meets the requirements of demanding automation environments.

Installation and Replacement Considerations

Installing the 1756-BA2 is a straightforward process. The battery is mounted in a designated battery holder within the ControlLogix chassis or directly in the controller module, depending on the hardware version. Proper orientation is essential to avoid connection issues, and Rockwell Automation provides clear documentation and markings to guide installation.

Replacement intervals are generally based on either time or diagnostics. Many ControlLogix controllers monitor battery status and generate a minor fault or warning when the battery voltage drops below a safe threshold. Maintenance technicians can then schedule replacement during a planned maintenance window, minimizing unexpected shutdowns.

Hot-swap replacement is one of the biggest advantages of this battery system. Since the controller can remain powered during replacement, there is no interruption to production, and memory retention is maintained throughout the process. This feature is especially valuable in continuous-process industries where even short stops can result in significant production losses.

Benefits to Industrial Operations

The 1756-BA2 battery offers a number of operational advantages:

• Reliability of Program Retention: Maintains controller memory during loss of external power.

• Reduced Downtime: Hot-swap capability allows replacement without halting production.

• Predictable Maintenance: Clear replacement schedules and controller diagnostics help avoid unexpected failures.

• Compact and Simple Design: Easy to handle and install, minimizing technician training time.

• Long Shelf Life: Ideal for spare-parts inventory management.

These benefits make the battery an integral part of any preventive maintenance strategy for ControlLogix systems.

Application Scenarios

While batteries are used in virtually all ControlLogix installations, certain environments highlight the importance of reliable memory backup even more clearly:

• Remote or Unmanned Facilities: Water treatment plants, pumping stations, and offshore installations often experience power interruptions and depend on reliable memory retention.

• Batch Processing Plants: In industries such as food and beverage or pharmaceuticals, losing a program could mean requalification of the process, which is expensive and time-consuming.

• Mission-Critical Control Systems: Power generation, safety systems, and critical infrastructure cannot afford data loss during outages.

In each of these scenarios, the 1756-BA2 provides confidence that the controller will restart with the correct program and data intact once power is restored.

Maintenance Strategy and Lifecycle Management

A good maintenance program should include periodic inspection of battery health. Many plants establish an annual or bi-annual preventive maintenance schedule that includes checking battery status in all controllers.

Best practices for managing 1756-BA2 batteries include:

• Maintaining a log of installation dates and expected replacement dates.

• Storing spare batteries in a cool, dry place to maximize shelf life.

• Using only genuine Rockwell Automation batteries to ensure proper fit, electrical characteristics, and compliance with certifications.

• Disposing of used batteries according to local regulations, as lithium batteries require special handling.

Lifecycle planning should also account for system expansions, as additional controllers will require additional batteries. Stocking spares in advance helps avoid delays during commissioning or emergencies.

Environmental and Safety Considerations

Lithium batteries, while safe when properly handled, do pose potential hazards if exposed to extreme heat, puncture, or short circuit. Rockwell Automation provides handling and disposal instructions to minimize risk. Personnel should follow all applicable standards for battery disposal, including recycling where available.

The battery’s compliance with RoHS and CE standards ensures it meets global environmental and safety requirements. This makes it suitable for use in systems deployed worldwide without additional certification efforts.

Conclusion

Though small in size, the Allen-Bradley 1756-BA2 lithium battery is a vital component in the reliable operation of ControlLogix systems. Its long life, hot-swap capability, and proven performance make it indispensable for industries that require uninterrupted control and memory retention. From discrete manufacturing lines to process plants and mission-critical infrastructure, this battery ensures that programs and data are safeguarded, protecting productivity and reducing costly downtime.

Organizations that implement a proper maintenance strategy for the 1756-BA2 can expect years of dependable service and predictable performance, aligning with the overall goals of operational efficiency and system reliability.
