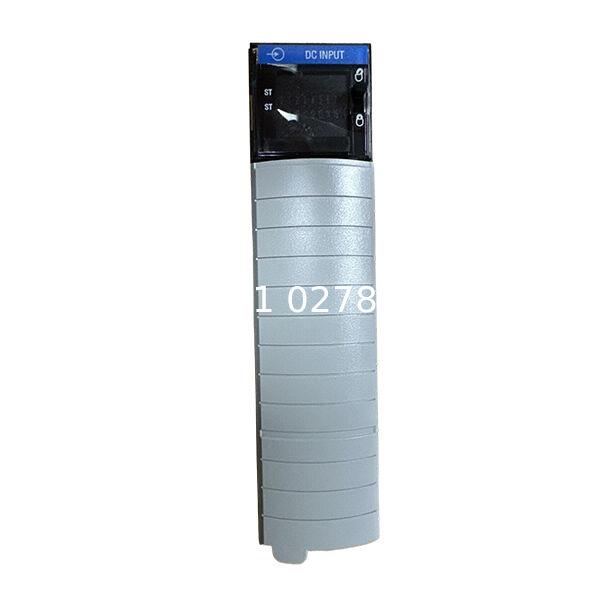

Allen-Bradley 1756-IB16 Digital DC Input Module: A Comprehensive Product Introduction

1. Overview

The Allen-Bradley 1756-IB16 is a high-performance digital direct-current (DC) input module designed for the ControlLogix platform, a flagship product of Rockwell Automation. Engineered to meet the rigorous demands of industrial automation, this module serves as a critical interface between field devices and control systems, converting discrete DC signals into actionable data for programmable logic controllers (PLCs). Its robust design, modular architecture, and advanced diagnostic capabilities make it a preferred choice for applications spanning manufacturing, energy, transportation, and building automation.

2. Technical Specifications

The 1756-IB16 module integrates cutting-edge technology to ensure reliability and precision in diverse industrial environments. Below is a detailed breakdown of its technical parameters:

3. Key Features

3.1 Modular Design for Flexibility

The 1756-IB16 adopts a single-slot, hot-swappable design, allowing seamless integration into ControlLogix chassis without disrupting system operation. It supports two types of removable terminal blocks (RTBs):

• 1756-TBCH: 20-position NEMA-style connector for high-vibration environments.
• 1756-TBS6H: 20-position spring-clamp connector for rapid wiring and maintenance.

This modularity simplifies installation, replacement, and scalability, enabling users to adapt to evolving automation needs efficiently.

3.2 Advanced Diagnostics and Fault Detection

The module incorporates built-in diagnostic tools to enhance system reliability:

• Wire Break Detection: Identifies open-circuit conditions in field wiring but does not detect blown fuses.
• Timestamp Logging: Records fault occurrence and clearance times for troubleshooting.
• Pulse Test Function: Validates input channel integrity by generating test pulses.
• LED Indicators: Visual status alerts for power, channel activity, and module health.

These features reduce downtime by enabling proactive maintenance and rapid issue resolution.

3.3 High Noise Immunity and Signal Integrity

Designed for harsh industrial settings, the 1756-IB16 employs opto-isolation to decouple field-side signals from the control system, minimizing electromagnetic interference (EMI) and voltage surges. Its wide input voltage range (10–30 VDC) accommodates fluctuations in power supply, ensuring stable operation even in unstable electrical environments.

3.4 Configurable Filtering for Dynamic Response

Users can adjust input filtering times (0–18 ms) to balance response speed and noise rejection. Shorter filters (e.g., 0 ms) suit high-speed applications like packaging lines, while longer filters (e.g., 18 ms) suppress transient noise in motor control systems.

4. Application Scenarios

The 1756-IB16’s versatility makes it indispensable across industries:

4.1 Automotive Manufacturing

In assembly lines, the module monitors sensor signals (e.g., proximity switches, limit switches) to track workpiece positions and robotic arm movements. Its fast response time (≤1 ms) ensures real-time control, preventing collisions and defects.

4.2 Water Treatment Plants

For pump station automation, the module detects valve states, liquid levels, and pressure switches. Its diagnostic capabilities alert operators to sensor failures or pipe leaks, enabling predictive maintenance and reducing water loss.

4.3 Elevator Control Systems

The 1756-IB16 captures floor button presses, door interlock status, and emergency stop signals. Its channel-to-channel isolation prevents crosstalk between safety-critical circuits, ensuring compliance with elevator safety standards.

4.4 Renewable Energy

In solar farms, the module monitors inverter status, grid connection points, and weather sensors. Its wide temperature tolerance (0–60°C) and IP20 rating suit outdoor installations, while its low power consumption optimizes energy efficiency.

5. Software Compatibility and Programming

The 1756-IB16 integrates seamlessly with Rockwell Automation’s ecosystem:

• RSLogix 5000/Studio 5000: Supports configuration, monitoring, and firmware updates via intuitive software interfaces.
• Add-On Instructions (AOIs): Enables custom logic for specialized applications (e.g., pulse counting, debouncing).
• EtherNet/IP Communication: Facilitates data exchange with HMIs, SCADA systems, and cloud platforms for Industry 4.0 initiatives.

6. Comparison with Competitors

Compared to Siemens SIMATIC ET 200SP DI 16x24VDC and Beckhoff EL1008, the 1756-IB16 offers distinct advantages:

7. Conclusion

The Allen-Bradley 1756-IB16 Digital DC Input Module exemplifies Rockwell Automation’s commitment to innovation and reliability. Its modular design, advanced diagnostics, and robust performance make it a cornerstone of modern industrial automation. Whether deployed in high-speed manufacturing or critical infrastructure, the 1756-IB16 delivers unmatched precision, flexibility, and uptime, empowering businesses to achieve operational excellence in the digital age.
