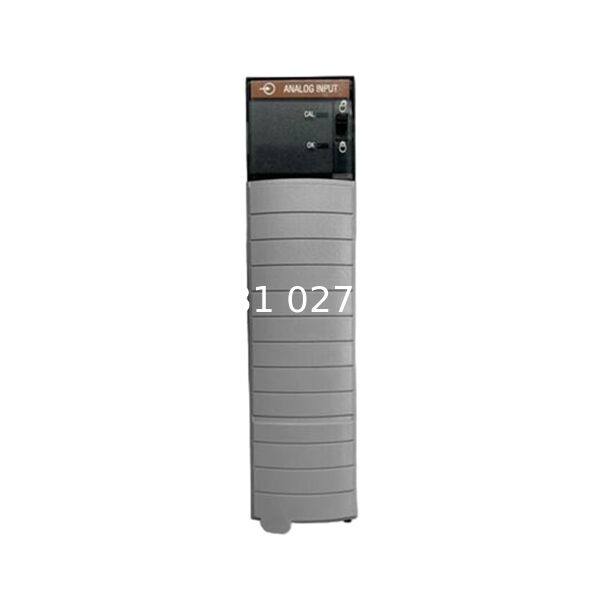

Allen-Bradley 1756-IF16 ControlLogix Analog Input Module

Product Overview

The Allen-Bradley 1756-IF16 is a high-performance 16-channel analog input module part of Rockwell Automation's ControlLogix series, designed for industrial automation applications requiring precise acquisition of analog signals from sensors, transducers, and other field devices. This module serves as a critical interface between physical process variables and digital control systems, enabling accurate monitoring and control in manufacturing, process control, and infrastructure automation systems

.

As part of the ControlLogix family, the 1756-IF16 exemplifies Rockwell Automation's commitment to precision measurement, system flexibility, and industrial reliability. Its sophisticated design allows for seamless integration into both new and existing automation networks, providing engineers with a versatile solution for diverse measurement applications across various industries

.

Key Features and Capabilities

Input Configuration and Flexibility

The 1756-IF16 offers exceptional signal flexibility with support for multiple voltage and current ranges, including ±10V DC, 0-10V DC, 0-5V DC, and 0-20mA/4-20mA

. This wide compatibility ensures the module can interface with various industrial sensors and measurement devices without requiring additional signal conditioning equipment.

A distinctive feature of this module is its configurable channel architecture that supports three wiring configurations:

• Single-ended wiring: Provides 16 input channels but is most sensitive to noise

Differential wiring: Offers 8 input channels with improved noise immunity

High-speed differential wiring: Delivers 4 input channels with fastest update rates

This flexibility allows users to optimize the module based on specific application requirements for channel count, noise immunity, and sampling speed.

Precision Measurement Performance

The 1756-IF16 delivers high-resolution conversion with resolution specifications that vary by input range:

• 320µV per count (15-bit + sign bipolar) @ ±10.25V input range

• 160µV per count (16-bit) @ 0-10.25V input range

• 80µV per count (16-bit) @ 0-5.125V input range

• 0.32µA per count (16-bit) @ 0-20.5mA input range

. This precision ensures reliable data acquisition for critical process measurements.

Conversion Speed and Processing

The module features variable scan times based on the selected wiring configuration:

• 16-488 ms for single-ended wiring

• 8-244 ms for differential wiring

• 5-122 ms for high-speed differential wiring

This range of scan times allows users to balance speed requirements with channel density and noise immunity needs for their specific applications.

Advanced Technical Architecture

The 1756-IF16 incorporates a sigma-delta analog-to-digital converter circuit that provides excellent noise rejection and stable performance

.

The module includes comprehensive diagnostic capabilities that monitor module status and performance while detecting wiring faults or abnormal conditions

. These features enhance system reliability and simplify troubleshooting processes.

Technical Specifications

The following table summarizes the key technical specifications of the Allen-Bradley 1756-IF16 analog input module:

System Configuration and Installation

Hardware Integration

The 1756-IF16 is designed for seamless integration into ControlLogix chassis systems, occupying a single slot. The module requires compatible terminal blocks such as the 1756-TBCH or 1756-TBS6H removable terminal blocks for field wiring connections

. These terminal blocks simplify wiring and maintenance procedures while ensuring secure connections.

For proper installation, the module must be installed in a ControlLogix chassis (1756-A4, A7, A10, A13, or A17 series) with appropriate consideration of power requirements and heat dissipation

.

Wiring Considerations

The module supports three wiring configurations to accommodate different application needs:

1. Single-ended wiring: Used when all input devices share a common ground reference. This configuration provides maximum channel count but is most susceptible to noise

• .

• Differential wiring: Recommended for applications without a common ground or where improved noise immunity is required. This configuration reduces channel count but enhances signal integrity

• .

• High-speed differential wiring: Designed for applications requiring fastest update rates. This mode further reduces channel count but provides the best performance for dynamic signals

3. .

Software Configuration

The 1756-IF16 is configured using Rockwell Automation's Studio 5000 Logix Designer software, which provides comprehensive tools for parameter setting, calibration, and diagnostics

. Configuration includes:

• Input range selection for each channel

• Filter parameter adjustment to optimize response time and noise rejection

• Scaling settings to convert raw data to engineering units

• Diagnostic enabling for fault detection and notification

Applications

The 1756-IF16 analog input module is suitable for a wide range of industrial automation applications:

• Process Control: Monitoring temperature, pressure, flow, and level in chemical, pharmaceutical, and food processing plants

• .

• Manufacturing Automation: Acquiring sensor data from production lines, assembly machines, and robotic systems in automotive, electronics, and consumer goods industries

• .

• Energy Management: Measuring power consumption, monitoring equipment performance, and optimizing energy usage in industrial facilities

• .

• Water and Wastewater Treatment: Monitoring pH, conductivity, flow rates, and tank levels in treatment plants

• .

• Building Automation: Integrating into HVAC control systems for monitoring temperature, humidity, and pressure in commercial and industrial buildings

• .

The module's high accuracy and flexible configuration make it particularly valuable for applications requiring precise measurement of multiple analog signals under varying environmental conditions.

Comparison and Considerations

When selecting the 1756-IF16 module, consider the following aspects:

• Channel Density vs. Performance: The module offers trade-offs between channel count and performance characteristics; evaluate your needs for precision, speed, and noise immunity against channel requirements.

• Signal Compatibility: Verify that your sensor outputs match the supported voltage and current ranges of the module.

• Environmental Conditions: The operating temperature range (0-60°C) is suitable for most industrial environments; extreme conditions may require additional protection.

• System Compatibility: The module works with ControlLogix controllers; ensure compatibility with your existing control system.

• Wiring Infrastructure: Consider the wiring configuration (single-ended, differential, or high-speed differential) based on your noise environment and performance requirements.

For applications requiring different I/O configurations or specifications, Rockwell Automation offers other modules in the 1756 series, such as the 1756-IF8 (8-channel analog input) and 1756-IF6I (6-channel isolated analog input).

Conclusion

The Allen-Bradley 1756-IF16 ControlLogix Analog Input Module is a sophisticated and versatile solution for industrial automation applications requiring precise acquisition of analog signals. Its 16-channel configuration (configurable to 8 or 4 channels for improved performance), wide signal range compatibility, and high-resolution conversion make it suitable for diverse applications across process control, manufacturing, and infrastructure automation.

With excellent accuracy, comprehensive diagnostic features, and flexible wiring options, the 1756-IF16 helps improve process efficiency and reduce downtime through reliable measurement data. Its robust design ensures consistent performance even in challenging industrial environments, making it a valuable component in modern automation systems.

For engineers and system integrators seeking a high-density analog input solution with proven reliability and seamless integration with Allen-Bradley ControlLogix systems, the 1756-IF16 represents an excellent choice that combines precision, flexibility, and durability characteristic of the Allen-Bradley brand.
